Destacadores PNDR-24

Destacador Modelo	Força (daN)	Ø. Corpo	Ø. Haste	Cursos Disponíveis (mm)	Ações
PNDR-24	117,8	M24x1,5	10	10 a 125
PNDR-24S	117,8	M24x1,5	10	10 a 125

Destacador PNDR-24

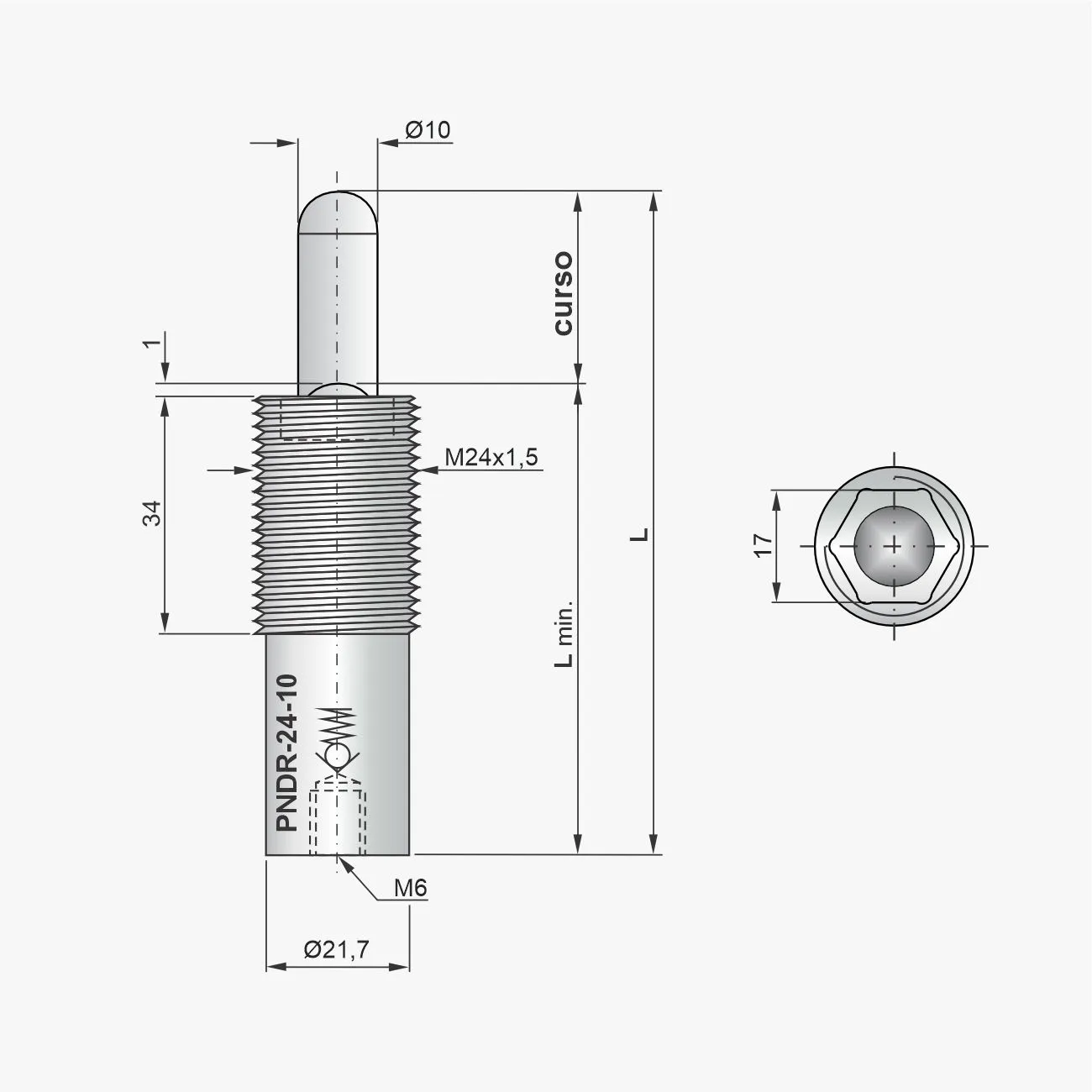

Código	Curso (mm)	Força daN inicial Pressão à 150bar	Força daN final Pressão à 150bar	L (altura) mm K=45	L min. (altura) mm	Vol. inicial (cm³)
PNDR-24-10-010	10	117.8	154.7	65	55	3.2	0.255
PNDR-24-10-015	15	117.8	164.1	75	60	4	0.266
PNDR-24-10-020	20	117.8	170.8	85	65	5	0.276
PNDR-24-10-025	25	117.8	175.9	95	70	5.8	0.287
PNDR-24-10-032	32	117.8	181.2	109	77	7	0.302
PNDR-24-10-038	38	117.8	184.7	121	83	8.1	0.315
PNDR-24-10-050	50	117.8	189.7	145	95	10.2	0.34
PNDR-24-10-063	63	117.8	193.4	171	108	12.5	0.368
PNDR-24-10-075	75	117.8	195.8	195	120	14	0.389
PNDR-24-10-080	80	117.8	196.7	205	125	15.6	0.404
PNDR-24-10-100	100	117.8	199.3	245	145	19.1	0.447
PNDR-24-10-125	125	117.8	201.6	295	170	23.5	0.5

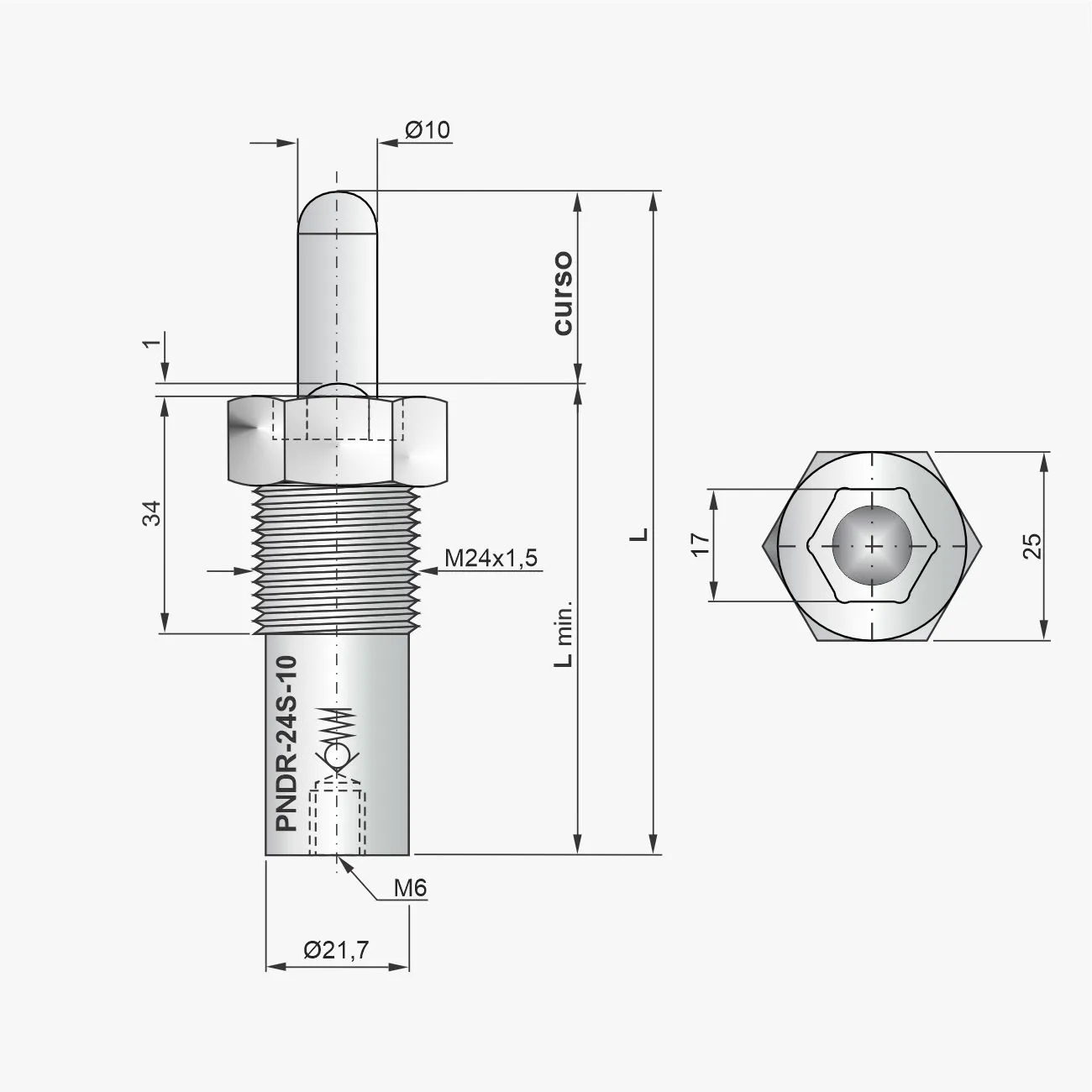

Código	Curso (mm)	Força daN inicial Pressão à 150bar	Força daN final Pressão à 150bar	L (altura) mm K=45	L min. (altura) mm	Vol. inicial (cm³)
PNDR-24S-10-010	10	117.8	154.7	65	55	3.2	0.261
PNDR-24S-10-015	15	117.8	164.1	75	60	4	0.272
PNDR-24S-10-020	20	117.8	170.8	85	65	5	0.283
PNDR-24S-10-025	25	117.8	175.9	95	70	5.8	0.293
PNDR-24S-10-032	32	117.8	181.2	109	77	7	0.308
PNDR-24S-10-038	38	117.8	184.7	121	83	8.1	0.321
PNDR-24S-10-050	50	117.8	189.7	145	95	10.2	0.346
PNDR-24S-10-063	63	117.8	193.4	171	108	12.5	0.374
PNDR-24S-10-075	75	117.8	195.8	195	120	14	0.395
PNDR-24S-10-080	80	117.8	196.7	205	125	15.6	0.411
PNDR-24S-10-100	100	117.8	199.3	245	145	19.1	0.453
PNDR-24S-10-125	125	117.8	201.6	295	170	23.5	0.506
